Butt welded pipe end stainless steel 304 321 316l 317 347h 904l cap 4 inch cap
Stainless Steel Pipe Cap, SS Pipe End Caps, Carbon Steel Square Pipe End Cap, Nickel Alloy Pipe End Cap, Alloy Steel Pipe Cap, Monel Pipe End Cap Manufacturer & Exporter
| Size | 1/2"-48" seamless,50“-110”welded |
| Standard | ANSI B16.9,MSS SP 43, DIN28011, EN10253-4, GOST17379, JIS B2313, MSS SP 75, etc. |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80,
SCH160, XXS and etc. |
| Type | Ellipsoidal head,pipe end cap,tank head,pressure vessel head,etc. |
| End | bevel end/BE/buttweld |
| Surface | pickled,sand rolling,brighten,matt polished,mirror polished |
| Material | Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,
A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541,
254Mo and etc. |
| Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760,
1.4462,1.4410,1.4501 and etc. |
| Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22,
C-276, Monel400, Alloy20 etc. |
| Application | Petrochemical industry;avation and aerospace industry;pharmaceutical industry;gas exhaust;
power plant;ship buliding;water treatment,etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,austomized;high quality |
Essential details
- Warranty:
-
1year
- Customized support:
-
OEM
- Place of Origin:
-
China
- Brand Name:
-
TOBO
- Technics:
-
cold press
- Connection:
-
Welding
- Shape:
-
Equal
- Head Code:
-
round
- Size:
-
1/2" up to 110"
- Wall thickness:
-
SCH 5s-SCH XXS
- Standard:
-
ASTM DIN EN BS JIS GOST etc.
- Name:
-
SCH 80 butt welded pipe end cap large diameter pipe cap
- Surface treatment:
-
sand blasting, roll blasting, pickled or polished
- End:
-
bevel end ANSI B16.25
- Production process:
-
seamless or welded
- Material:
-
304,304l,316,316, 321,347h,310s, s31803,saf2205, etc.
- Application:
-
Chemical
- MOQ:
-
10pcs
Supply Ability
- Supply Ability
- 3000 Ton/Tons per Year
Packaging & delivery
- Packaging Details
- below 8", will be packed by plywood case
above 8", will be packed by plywood pallet
- Port
- shanghai, ningbo
- Lead time:
-
| Quantity(pieces) | 1 - 1000 | >1000 |
| Lead time (days) | 15 | To be negotiated |

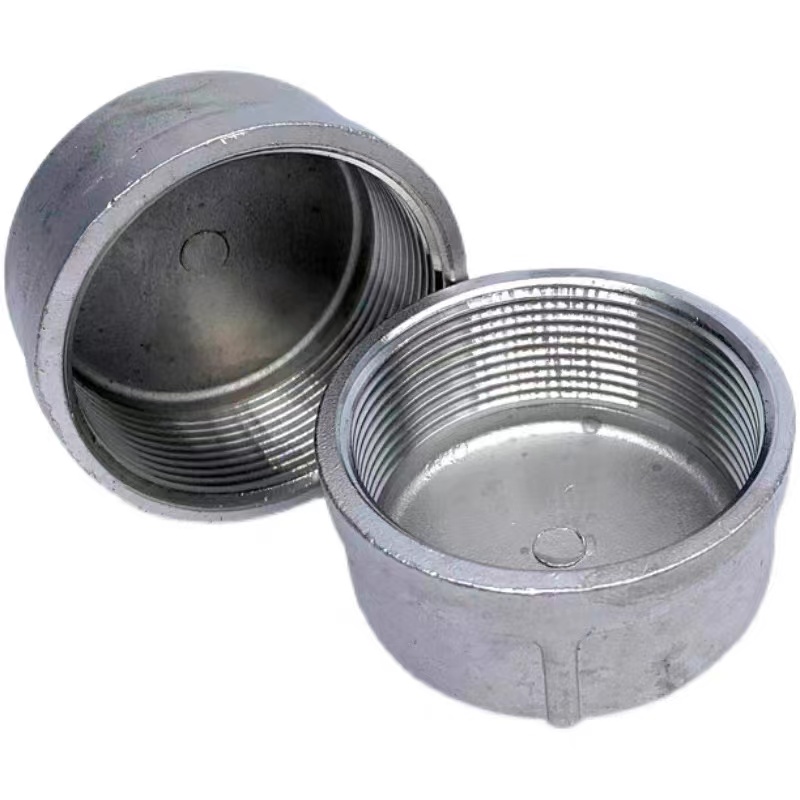

A pipe cap is a type of pipe fittings, also known as heads, plugs, bulkheads, which are welded on the pipe end or installed on the external thread of the pipe end to cover the pipes. Used to close the pipeline, the function is the same as the pipe plug.
- Pipe cap materials: carbon steel, stainless steel, alloy steel, PVC, plastic, etc.
- Pipe cap connection methods: threaded connection, socket weld, butt Weld, etc.
- Pipe cap shapes: round head caps, hex head caps, etc.
- Pipe cap manufacturing standards: ASME B16.11, ASME B16.9, etc.
- Pipe cap manufacturing process: forging and casting (Forging refers to the use of steel ingots or round bars for heating and forging forming, and then processing threads on a lathe; Casting refers to the melting of steel ingots and pouring them into a fixed pipe hoop model, and then cooling them).
- Pipe cap applications: pipe caps act as a protective device and are designed to protect pipe ends of various shapes. The main purpose of using pipe caps is to waterproof the connections. They are also used to close the ends of hydraulic or pneumatic pipes and tubes. They are used in the plumbing apparatus of domestic, commercial, and industrial water supply lines, machinery and processing equipment, etc. They are also fitted on water pump lines with the sole purpose of removing air blocks.
Q1: Are you trading company or manufacturer ?
A: We are factory.You can visit our factory if you have time, we also can take a video for you to show our office and factory.
Q2: How long is the delivery ?
A:Generally it is 5-10 days if the goods are in stock.it is 15-20 days if the goods are not in stock It is According the QUANTITY.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q 4. What's the payment term?
A: We accept T/T 30% deposit and 70% balance before the shipment, West Union, VISA is also accepted.
Q5. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
Q6. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
Q7. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
